PES Syringe Filters

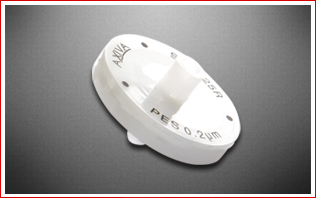

AXIVA – PES SYRINGE FILTERS – STERILE

Media       –    PES (Polyethersulfone) Membrane
Housing   –    Polypropylene
  • PES is hydrophilic and is made of polyethersulfone polymer membrane.
  • PES membrane Syringe Filters are recommended for the filtration of culture media, culture soups, serum solutions.
  • Nutrients, growth regulators, gold conjugate, hormones and other sensitive solution.
  • PES Membrane are validated for absolute bacterial retention, hold up volume and protein recovery.

Key Features

  • Extremely low protein binding results in very high product recovery
  • High Flow Rates
  • Absolute microbial retention
  • Low Extractable
  • Low hold up volume

Technical Specification :

Retention Efficiency : 0.2 µm – LRV > 7 for Brevundimonas diminuta
0.45 µm – LRV > 7 for Serratia marcescens
Wettability : Hydrophilic
Sterilization : ETO
Effective filtration area : 0.1cm2 for 4mm, 0.8 cm2 for 13mm & 3.9 cm2 for 25mm &
4.6 cm2 for 33mm
Hold up volume : <10 µl for 4 mm, < 20 µl for 13 mm & < 50 µl for 25mm &
80µl for 33mm (after air purge)
Intergrity Test : Water bubble point > 50psi for 0.2 µm & >30 psi for 0.45 µm
Extractable (NVR) : Very low (with in limit as specified in USP XXIV)
Initial Water flow rate
(at 10 psi for 25 mm)
: 46.2ml/min for 0.2 µm & 68.0ml/min for 0.45 µm
Filtration Volume : < 1ml for 4mm, 1-10ml for 13mm & 10-100ml for 25mm &
30-150ml for 33mm
Sterilie :
Sterilization : ETO
SPECIFIC FEATURES :
  • Low protein binding to minimize sample loss
  • Wide chemical compatibility
  • Low sample absorption
APPLICATIONS :
  • For Analytical and Research applications.
  • Recommended for aqueous as well as organic solvent filtration
  • Filtration of difficult filter solutions.

ORDERING INFORMATION :

Cat NoSize/Dia (mm) Micron Rating Nos./Pkt.
SFPS04R40.2 µm100
SFPS04X40.45 µm100
SFPS13R130.2 µm100
SFPS13X130.45 µm100
SFPS25R250.2 µm50
SFPS25X250.45 µm50
SFPS33R330.2 µm50
SFPS33X330.45 µm50
pes-syringe-filters2

AXIVA – PES SYRINGE FILTERS – NON STERILE

Packed in transparent Plastic Jar (BULK PACK)

Application

  • Clarification of Protein solutions, culture media, high value additive and Serum Filtration of gold conjugate.

ORDERING INFORMATION :

Cat NoSize/Dia (mm)Micron Rating Nos./Pkt.
SFPS04RB4 0.2 µm100
SFPS04XB4 0.45 µm100
SFPS13RB13 0.2 µm100
SFPS13XB13 0.45 µm100
SFPS25RB35 0.2 µm100
SFPS25XB25 0.45 µm100
SFPS33RB33 0.2 µm100
SFPS33XB33 0.45 µm100
pes-syringe-filters1
